XPTN-9000-45-5GT Switch Công nghiệp Scodeno 5 cổng 5*10/100/1000 Base-T None PoE

This device 5*10/100/1000Base-T Industrial Ethernet Switches, PoE is optional. Through the fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks. The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.

SPECIFICATION

Provider Mode Ports:

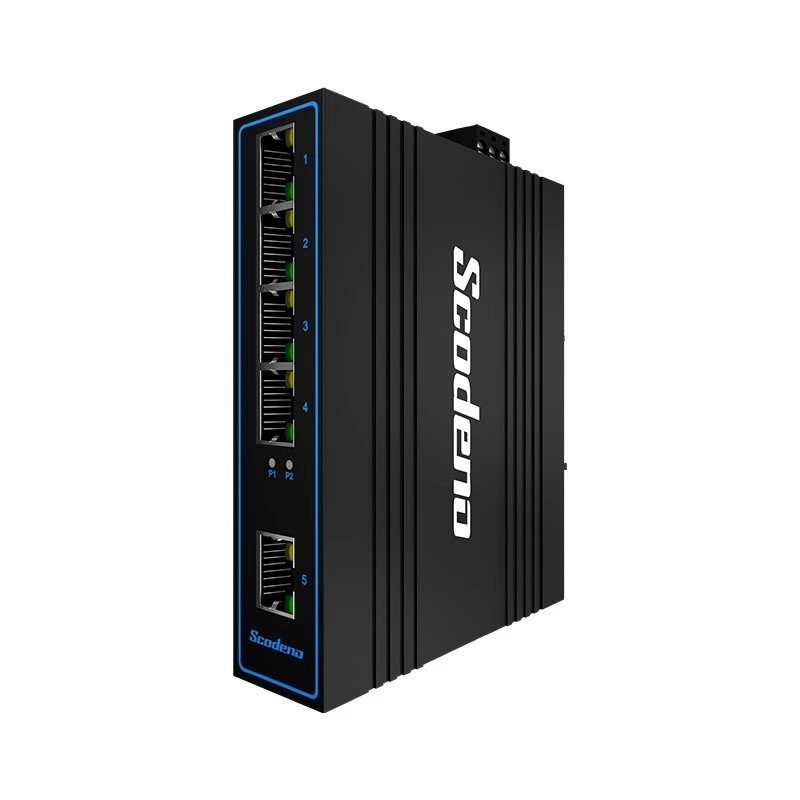

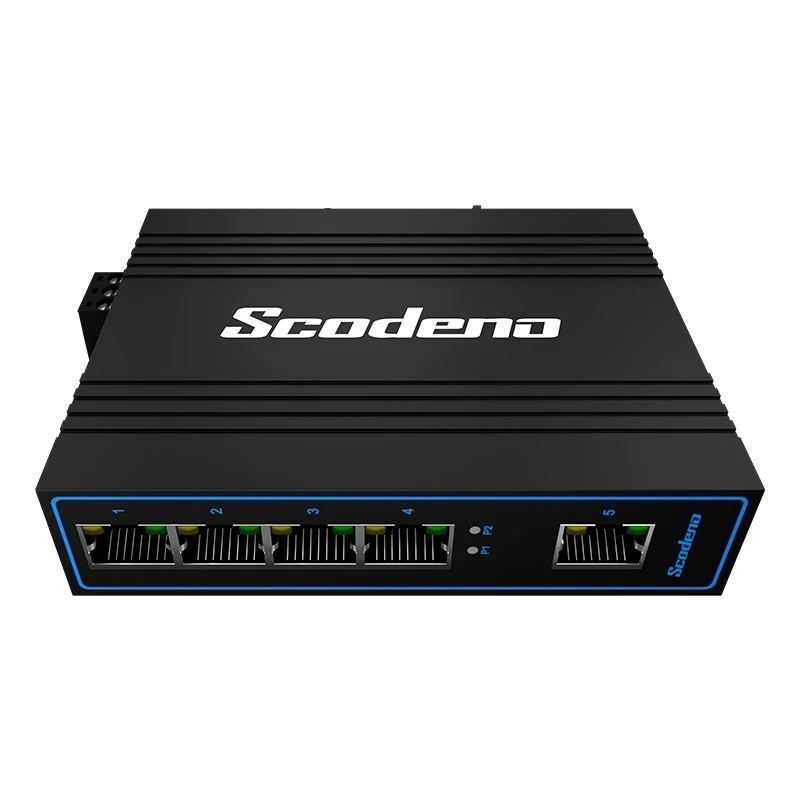

• Fixed port: 5*10/100/1000Base-T
• Management Port: None

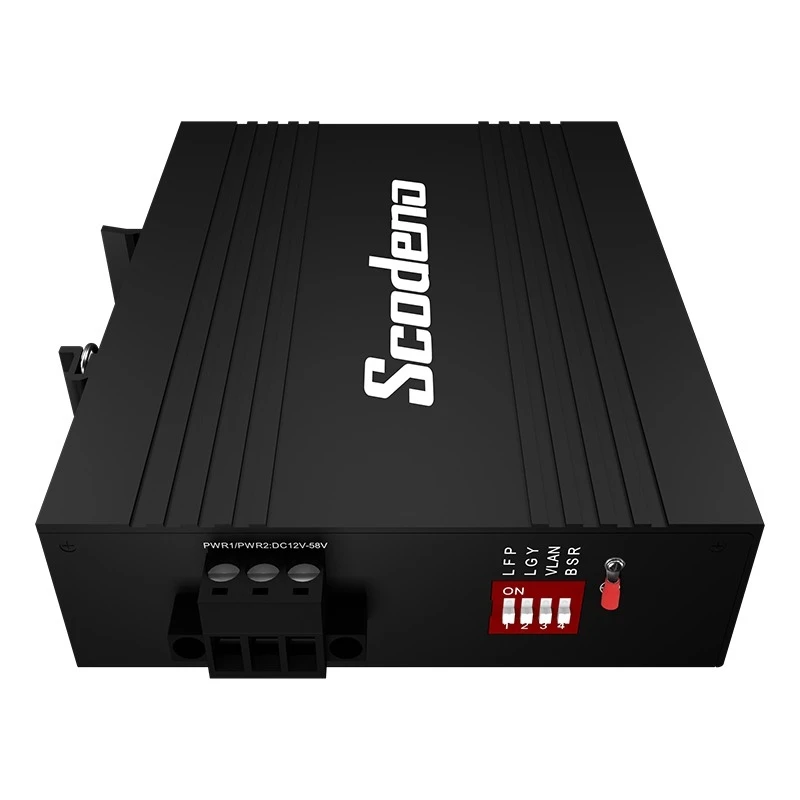

• Power interface: Phoenix terminal, dual power supply
• LED Indicators: PWR, Link/ACT LED

Cable Type & Transmission Distance:

• Twisted-pair: 0-100m (CAT5e, CAT6)
• Monomode optical fiber: None
• Multimode optical fiber: None
• DIP Switch:

1 LFP: Reserve

• 2 LGY: Reserve
• 3 VLAN: Port Isolation
• 4 BSR: Reset

Network Topology:

• Ring topology: Unsupported
• Star topology: Support
• Bus topology: Support
• Tree Topology: Support
• Hybrid topology: –

Electrical Specifications:

• Input voltage: 12 to 58 VDC
• Total Power consumption: Max. 5 W full loading without PDs’ consumption
• PoE Model: 120 W (max.) @ 48 to 58 VDC for total PD consumption; 30 W (max.) for each PoE port

PoE Support:

• PoE port: None
• PoE Protocol: None
• Pin Assignment: None
• PoE Management: –

Layer 2 Switching:

• Switching capacity: 14G
• Packet forwarding rate: 10.416 Mpps
• MAC address table: 2K
• Buffer: 1M
• Forwarding delay: <5 µs
• MDX/MIDX: Support
• Flow control: –
• Jumbo frame: 9216Bytes
• Storm Control: –
• Port-Isolation: –
• Remote PD Reset: –

Environment:

• Operating temperature: -30℃~+75℃
• Storage temperature: -30℃~+75℃
• Relative humidity: 10%~90% (non-condensing)
• Thermal methods: Fanless, natural cooling
• MTBF: 100,000 hours

Mechanical Dimensions:

• Product size: 31*91*118mm

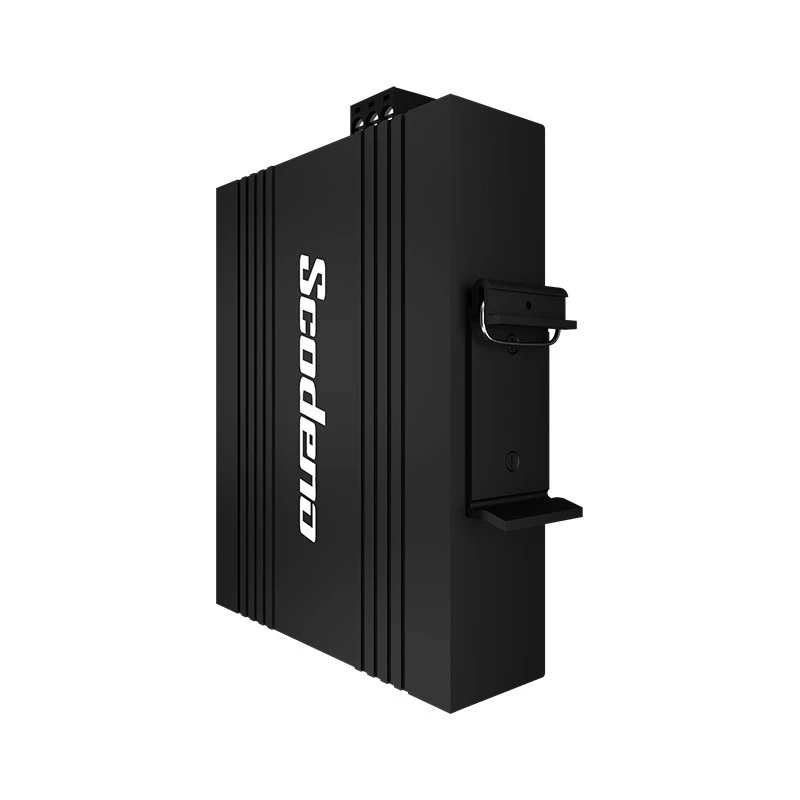

• Installation Method: DIN-rail
• Weight: 0.36 Kg

EMC & Ingress Protection:

• IP Level: IP40
• Surge protection of Power: IEC 61000-4-5 Level 3 (4KV/2KV) (8/20 µs)
• Surge protection of Ethernet port: IEC 61000-4-5 Level 3 (4KV/2KV) (10/700 µs)
• RS: –
• EFI: –
• CS: –
• PFMF: –
• DIP: –
• EMI: –
• ESD: IEC 61000-4-2 Level 4 (8K/15K)
• Free fall: 0.5m
• Authentication:

Certificates: CCC/CE/FCC/RoHS

• Accessories: Device, Terminals, Specification, Certificate, Adapter (optional)
