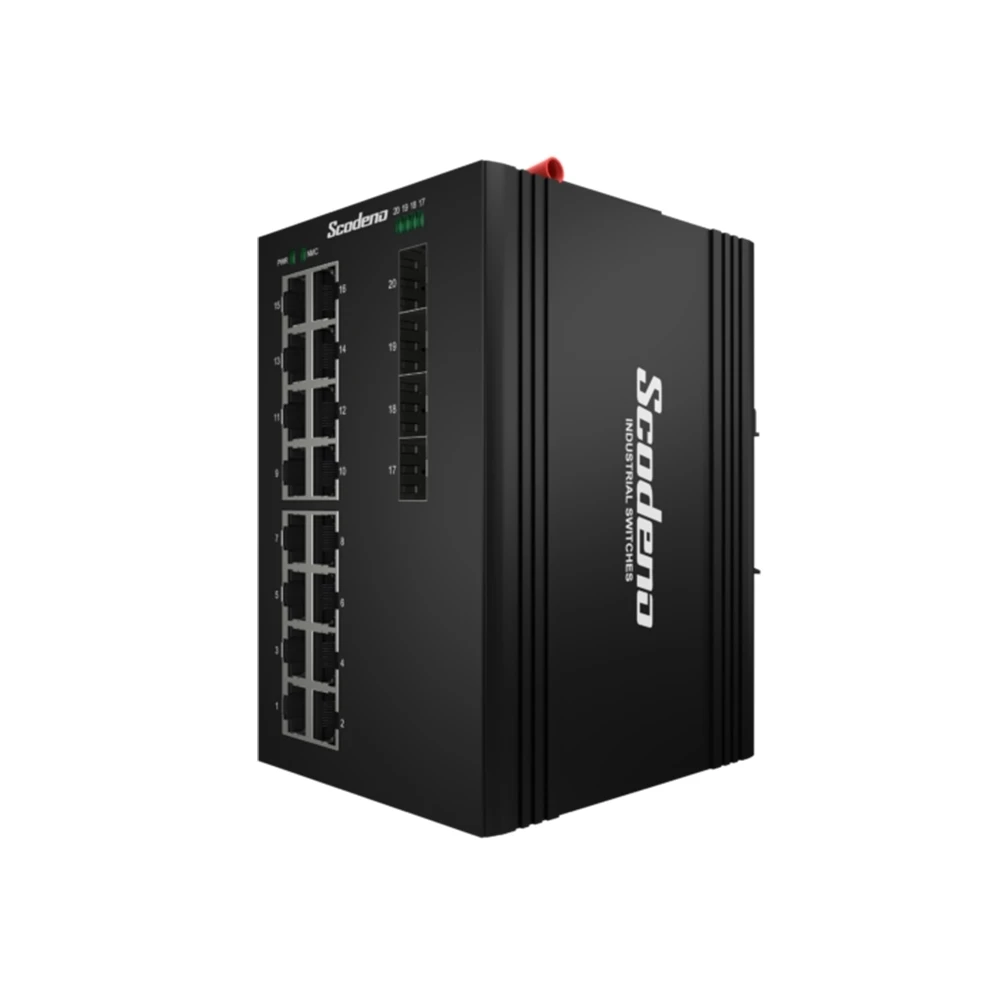

XPTN-9000-65-4GX16GT Switch Công nghiệp Scodeno 20 cổng 4*1000 Base-X, 16*10/100/1000 Base-T None PoE

This device is 4*1000 Base-X & 16*10/100/1000 Base-T Industrial Ethernet PoE Switches. Through the fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks. It can better meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.

SPECIFICATION

Provider Mode Ports:

• Fixed port: 4*1000 Base-X， 16*10/100/1000 Base-T
• Management Port: Unsupported
• Power interface: Phoenix terminal, redundant dual power supply
• LED Indicators: PWR, Link/ACT LED

DIP Switch:

• 1 C/D: None
• 2 LGY: None
• 3 VLAN: None
• 4 RST: None

Cable Type & Transmission Distance:

• Twisted-pair: 0-100m (CAT5e, CAT6)
• Monomode optical fiber: 20/40/60/80/100KM
• Multimode optical fiber: 550m

Network Topology:

• Ring topology: Unsupported
• Star topology: Support
• Bus topology: Support
• Tree Topology: Support
• Hybrid topology: Support

Electrical Specifications:

• Input voltage: DC12-58V (Non-PoE), DC48-58V(PoE)
• Total Power consumption: <26W(Non-PoE); <386W(PoE)
• Voltage Alarm: –

PoE Support:

• PoE port: 1~16
• PoE Protocol: 802.3af，802.3at
• Pin Assignment: 12+, 36-
• PoE Mode:
• PoE Management: None
• Remote PD Reset: None

PoE++ Support (Optional):

• PoE++ Port: 1-16
• PoE++ Protocol: 802.3af，802.3at，802.3bt ( Port 1 & Port 2 support 90W per port)
• PoE++ Pin Assignment: 1245+, 3678-

Layer 2 Switching:

• Switching capacity: 68G
• Packet forwarding rate: 50.59Mpps
• MAC address table: 16K
• VLAN: Unsupported
• Buffer: 12M
• Forwarding delay: <10 µs
• MDX/MIDX: Support
• Flow control: Support
• Jumbo Frame: Support 10K Bytes
• WatchDog: –
• Port Isolation: –

Environment:

• Operating temperature: -40℃ ~ +75℃ The device is tested for 4 hours at temperatures in 85℃
• Storage temperature: -40℃ ~ +85℃
• Relative humidity: 5% ~ 95% non-condensing
• Thermal methods: Fanless, natural cooling
• MTBF: 100,000 hours

Mechanical Dimensions:

• Product size: 94*104*143 mm
• Installation Method: DIN rail
• Weight: 1 Kg around

EMC & Ingress Protection:

• IP Level: IP40
• Surge protection of Power: IEC 61000-4-5 Level X (6KV/6KV) (8/20 µs)
• Surge protection of Ethernet port: IEC 61000-4-5 Level X (4KV/4KV) (10/700 µs)
• RS: IEC 61000-4-3 Level 3 (10V/m)
• EFI: IEC 61000-4-4 Level 3 (1V/2V)
• CS: IEC 61000-4-6 Level 3 (10V/m)
• PFMF: IEC 61000-4-8 Level 4 (30A/m)
• DIP: IEC 61000-4-11 Level 3 (10V)
• ESD: IEC 61000-4-2 Level 4 (8K/15K)
• Free fall: 0.5m

Authentication:

• Certificates: CCC, CE, FCC, RoHS
• Accessories: Device, Terminals, Specification, Certificate, Power adapter(optional)
